AOC-Q14S-010

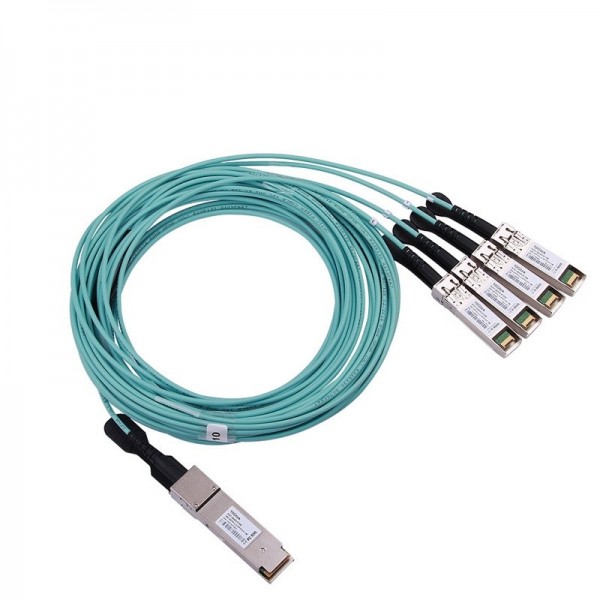

QSFP+ to 4x SFP+ AOC Breakout Cable
![](/storage/more/p-images/1/356_1535081181.jpg)
10Gtek’s QSFP-4SFP-AOC-10M, QSFP+ to 4x SFP+ AOC cable is a 40GBase QSFP+ hybrid optical cable. A side is a QSFP+ optical connector, B side is 4 SFP+ optical connectors. It’s an application for the link with QSFP+ port on 40Gb/s rate switch or host and feeds up to 4 upstream 10Gb/s switch or host.
order
40GBase QSFP+ to 4x 10G SFP+ Connectors
OM3 MMF Cable
Full duplex 4 channel 850nm parallel active optical cable
Transmission data rate up to 10.3Gbit/s per channel
SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
Management Interface and digital diagnostic monitoring(DDM) through I2C
Support Rx output pre-emphasis
4ch 850nm VCSEL array
4ch PIN photo detector array
Helix type multi-mode optical fibre cable of up to 100m
OFNP (Optical Fibre Non-Conductive Plenum) rated cable
Differential AC-coupled high speed data interface
Low power consumption of typical 0.8W per end
Housing isolated from connector ground
Easy to use release mechanism
Operating case temperature 0oC to +70oC
3.3V power supply voltage
RoHS 6 compliant
Laser Class 1
OM3 MMF Cable
Full duplex 4 channel 850nm parallel active optical cable
Transmission data rate up to 10.3Gbit/s per channel
SFF-8436 QSFP+ compliant housing and hot pluggable electrical interface.
Management Interface and digital diagnostic monitoring(DDM) through I2C
Support Rx output pre-emphasis
4ch 850nm VCSEL array
4ch PIN photo detector array
Helix type multi-mode optical fibre cable of up to 100m
OFNP (Optical Fibre Non-Conductive Plenum) rated cable
Differential AC-coupled high speed data interface
Low power consumption of typical 0.8W per end
Housing isolated from connector ground
Easy to use release mechanism
Operating case temperature 0oC to +70oC
3.3V power supply voltage
RoHS 6 compliant
Laser Class 1
40G Ethernet, 10GEthernet
TOR Switch
Datacom and Telecom switch or router backplane connection
High performance computing interconnect
TOR Switch
Datacom and Telecom switch or router backplane connection
High performance computing interconnect
