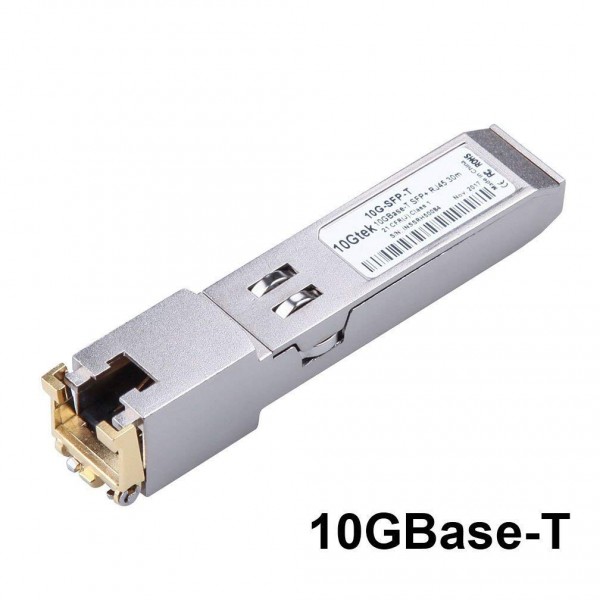

ASF-10G-T
SFP+ Copper Transceiver 10GBase-T, Cat 6a/7, 30M
The 10GBASE-T copper transceiver module is a high performance integrated duplex data link for bi-directional communication over copper cable. It is specifically designed for high speed communication links that require 10 Gigabit Ethernet over Cat 6a/7 cable. This is the first SFP+ transceiver that offers 10 Gb/s communication over this type of media.
order
10G BASE-T IEEE 802.3an
1000BASE-T IEEE 802.3ab
100BASE-TX IEEE 802.3u
5G MGBASE-T
2.5G MGBASE-T
Low Power Consumption (2.5W MAX @ 30m)
1000BASE-T IEEE 802.3ab
100BASE-TX IEEE 802.3u
5G MGBASE-T
2.5G MGBASE-T
Low Power Consumption (2.5W MAX @ 30m)
Support 10GBASE-T Operation in Host Systems
Support RX_LOS as Link indication function
Hot-Pluggable SFP Footprint
Compact RJ-45 Connector Assembly
Compliant with SFP MSA
Operating Temperature：0℃~70℃
Support RX_LOS as Link indication function
Hot-Pluggable SFP Footprint
Compact RJ-45 Connector Assembly
Compliant with SFP MSA
Operating Temperature：0℃~70℃
