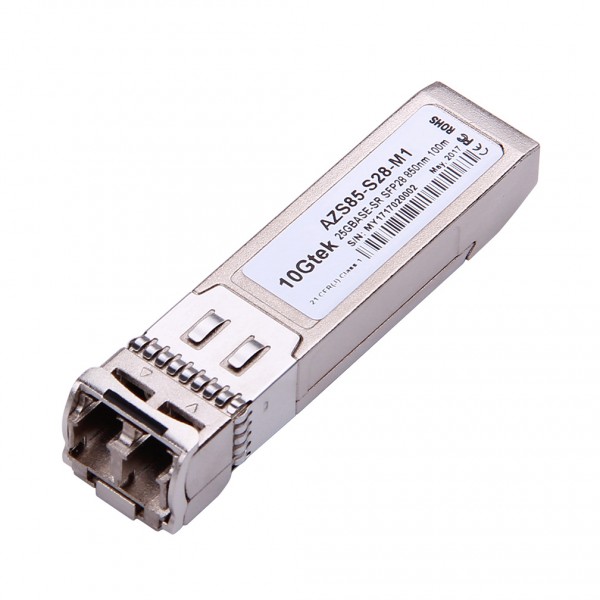

AZS85-S28-M1
SFP28 SR
The AZS85-S28-M1 is an 850 nm VCSEL 25Gigabit SFP28 transceiver. It is designed to transmit and receive optical data over 50/125μm multimode optical fiber (MMF) and support up to 70m on OM3 MMF and 100m on OM4 MMF. The module has a duplex LC optical interface and all mechanical characteristics are compliant with the current SFP+ specification (SFF-8431 and SFF-8432).
order
Electrical interface compliant to SFF-8431
850nm VCSEL laser and PIN photo-detector
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Hot Pluggable
RoHS compliant
850nm VCSEL laser and PIN photo-detector
Maximum link length of 70m on OM3 MMF and 100m on OM4 MMF
Digital diagnostics functions are available via the I2C interface
Hot Pluggable
RoHS compliant
25GBASE-SR Ethernet
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters
InfiniBand QDR, SDR, DDR
Servers, switches, storage and host card adapters
